Water Source Heat Pump
>
|
| Place of Origin | Guangzhou China |
| Brand Name | horizontal-slurrypump.com |
| Certification | CE ISO CCC UKAS,ROHS |
| Model Number | OEM |
| Document | Product Brochure PDF |

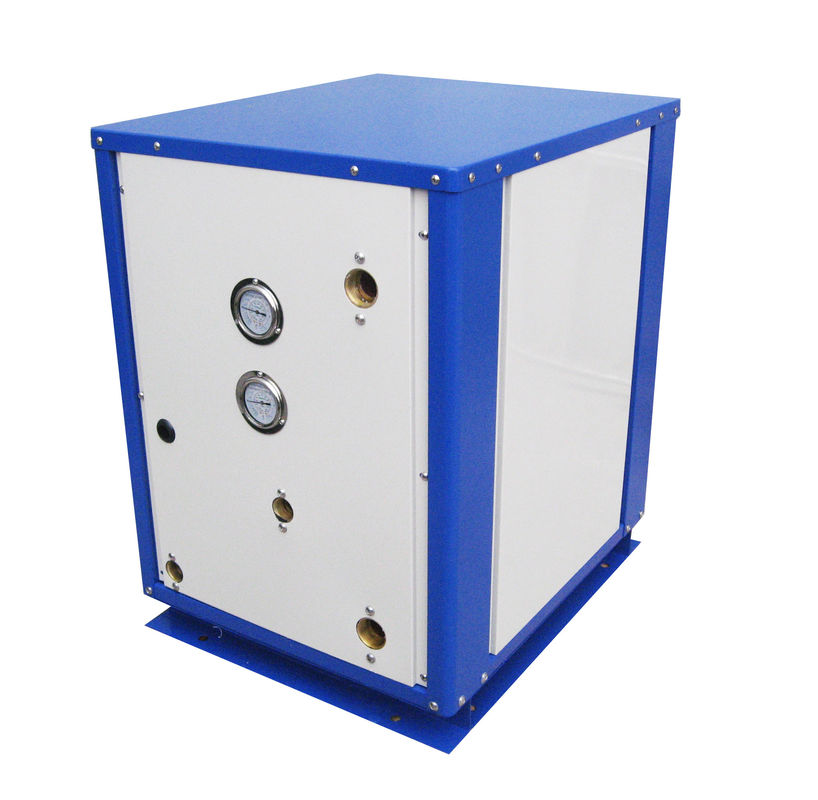

high cop ground source geothermal heat pump monoblock heat pump water source MD30D
Technology Specification
Porduct Details
| Rated heating capacity | KW | 12 | |
| Hot water supply | L/h | 260 | |
| Average heating input power | KW | 2.89 | |
| Rated heating input current | A | 13/6 | |
| Max outlet water temp | ℃ | 80 | |
| COP | 4 | ||
| Power | V/Hz | 220V/380V/50 | |
| Noise | Db(a) | 50 | |
| Dimension | W*D*H | mm | 657×557×765 |
| Packing size | W*D*H | mm | 737×637×915 |
| Unit weight | KG | 108 | |
| Refrigerant | R417A/R407C | ||
| Working air temp range | ℃ | (-40℃)—45℃ | |
| compressor | Type | Copeland | |
| water source heat exchanger | Type | Plate heat exchange | |
| Pipe size | DN | 25 | |
| Hot water side heat exchange | Type | Coil heat exchanger | |
| Water flow | L/H | 3300L/h | |
| Water pressure down | Kpa | 35 | |
| Pipe size | DN | 25 | |
| Max house heating | M2 | 100 | |
water source heat pump installation different situations:
| Water source heat pumps can use groundwater, river water, tap water, industrial wastewater as a water source, and people can choose suitable water sources according to their most favorable conditions. If groundwater is used, people can drill wells according to local geology, and generally more wells than pumping wells, because pumping water is easier than recharging. Construction of other water source heat pump projects is relatively easy. |
A. Payment service
1. T/T
2. L/C (for container order only)
B. Technical service
1. We calculate the capacity and recommend the best models.
2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3. We supply the spare parts and technical support in and after the warranty time.
4. We supply the training course to your workers at our factory if you need.
5. We can offer site training to your workers in your place which is negotiable.
C. After-sales service
1. Technical support for your installation, operation and maintenance.
2. Standard warranty time: One years’warranty for heat pumps
You can also pay for extended warranty or we can renegotiate the longer warranty period.
3. Spare parts and technical support at most economic prices after the warranty.
FAQ
Q1. Can I have a sample order for Heat pump or Water tank?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-10days, mass production time depend on the products'quantity.
Q3.Do you offer guarantee for the products?
A: Yes, 12 months since the heat pump depart from the port of loading (Refer to the Bill of Lading).
Certificsate we have got :
Our leading products
Air to water heat pump , DC inverter heat pump, High water temperature heat pumps
Monoblock house heating heat pumps ,Split heat pump ,Super low noise heat pump
Heat pump dryer ,Ground source heat pump , water to water heat pump , swimming pool heat pump
Packaging & Shipment
1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.
2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transporattion .
3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.
5> Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
Packaging Details :Standard export packing -with plywoods case packages,OEM is available for Factory price heat pump water heaters
Delivery Time :15 work days after arrival of down payment
