long life service spare parts
High efficiency and low power consumption
Short delivery
ISO9001:2008 passed
Main applications :
This kind of slurry pump spare parts are mainly used in for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
| AH(R) | L(R), M | HH | SP(R) | G | AF Series |
| 1.5/1B-AH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-AH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-AH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-AH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-AH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | |
| 6/4E-AH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | |
| 8/6E-AH(R) | 350S-L | 6S-H | 14/12T-G | ||
| 8/6R-AH(R) | 400ST-L | 8/6S-H | 16/14 G-G | ||
| 10/8F-AH(R) | 450ST-L | 8/6X-H | 16/14TU-GH | ||
| 10/8X-AH(R) | 10/8 E-M | 6S-HP | 16/14H-GH | ||
| 12/10ST-AH(R) | 10/8 R-M | 8/6S-HP | 18/16G-G | ||
| 14/12ST-AH(R) | 8/6X-HP | 18/16TU-GH | |||
| 16/14TU-AH(R) | |||||
| 20/18G(TU)-AH(R) |
Pump replaced parts material:
1. Bearing assembly- large diameter shaft with short overhang contributes to long bearing life.
2. Liners – easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3. Casing – casing halves of cast or ductile iron provide high operating pressure capabilities.
4. Impeller – front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5.Throat bush – wear is reduced and maintenance simplified by the use of tapered.
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |

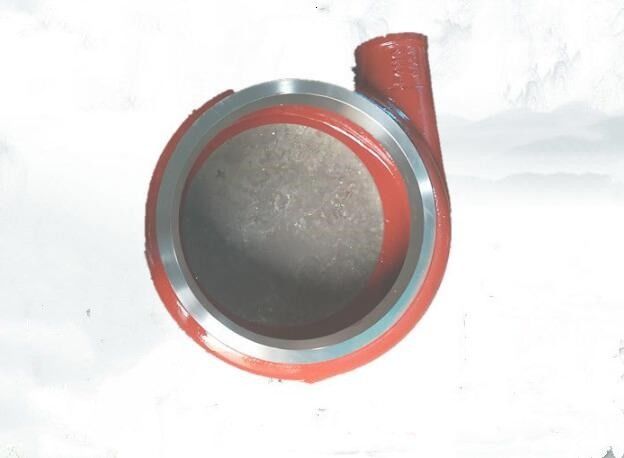

| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |
