light vertical multistage centrifugal pump

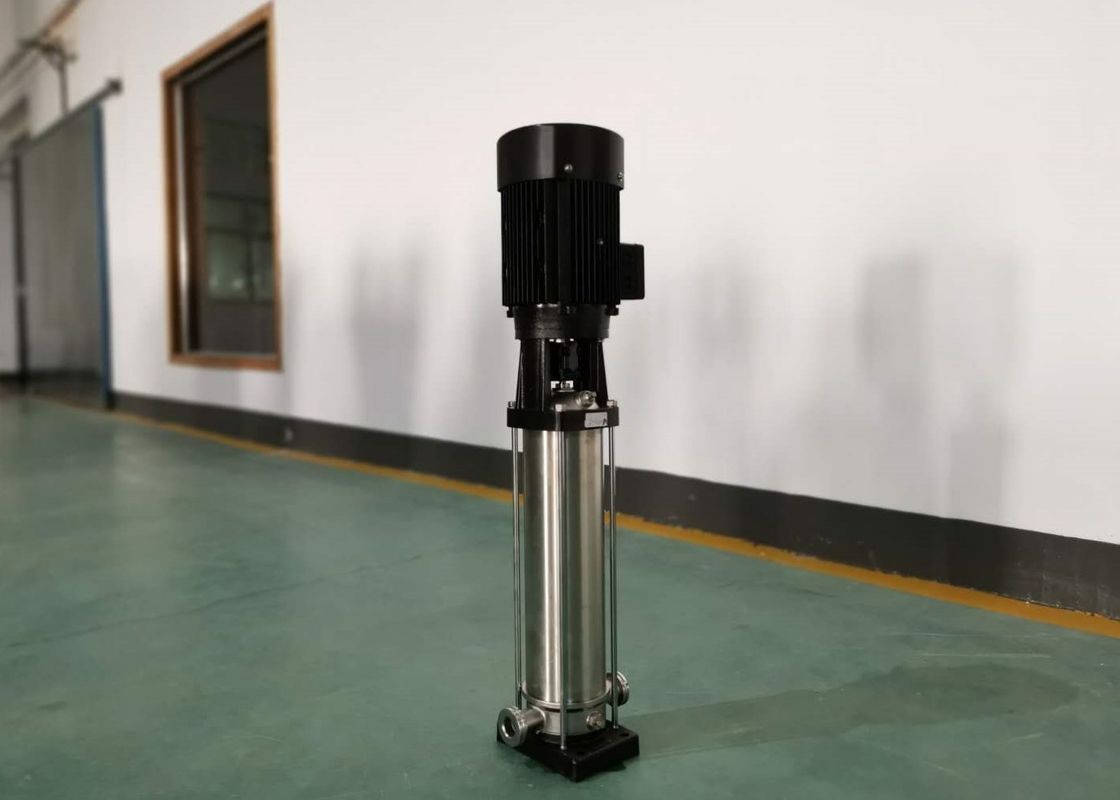

CDLF2-260 high head stainless steel vertical multistage pump for water pressure boosting, with high efficiency motor

CDL/CDLF vertical multistage stainless steel centrifugal pump is widely used to handle noncorrosive or lightly-corrosive liquid in various applications, as shown in below,

Applications

• water supply.......................water filtration and conveying in water works, water boosting in high buildings.
• insdustrial boosting............water process system, cleaning system, high-pressure flushing system and fire fighting system.
• industry liquid conveying....cooling and air-conditioning system, boiler feed and condensate system, machines.
• water treatment..................filtration system, reverse osmosis system, distillation system, seperator, and swimming pool.
• irrigation.............................field irrigation, sprinkling irrigation and drop irrigation.​
• Integrity pump set. Motor seated on pump, connected by couplings.​

When equipped with intelligent protector, dry running, out of phase and overload could be avoided.

Photos and Details


Design and Advantages

• Stainless steel impellers. Stamping-welded or precision-casted.
• Suction and discharge on the same level.
• High efficiency, energy-saving.
• Easy installation. Little space required.
• Easy maintenance. Sealing could be replaced as one piece.

Model Explanation

Range at 50Hz


Range at 60Hz

Sectional Drawing

Performance curve







































Dimension drawing
