| Place of Origin | China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO |
| Model Number | OEM |
| Document | Product Brochure PDF |
1. SHIZA brand slurry pump spare parts are made of high chromium alloy A05 which has superior wear
and corrosive resistance as well as rubber liners parts made of high quality natrual rubber to
transport the medium with light abrasion and non-sharp solids liquid and have small corrosive liquid.
2. We do standard chrome alloy materials or rubber parts OEM .
Warma slurry pump parts code:
-tell me the standard code no .we can quote you price immediately :
B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,
EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,
GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR...
| No. | Name | Material |

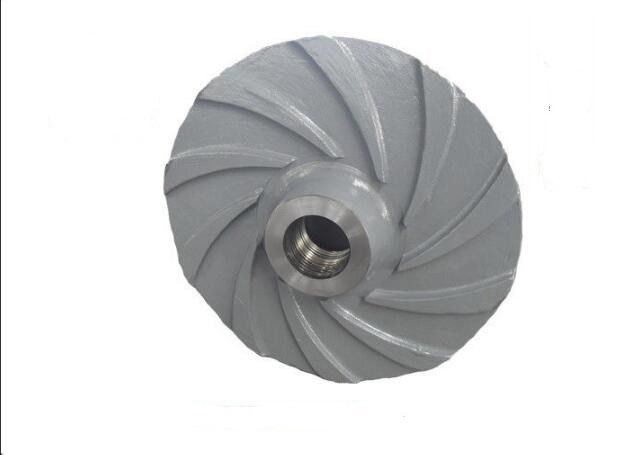

| 1 | Impeller | High-chrome alloy |
| Natural Rubber | ||
| 2 | Volute casing | High-chrome alloy |
| 3 | Front liner plate | High-chrome alloy |
| Natural Rubber | ||
| 4 | Rear liner plate | High-chrome alloy |
| Natural Rubber | ||
| 5 | Liner | High-chrome alloy |
| 6 | Expeller | High-chrome alloy |
| 7 | Shaft sleeve | 3Cr13 |
| 8 | Water-seal ring | High-chrome alloy |
| 9 | Shaft | 45#steel quenching and high temprature tempering |
| 10 | Bearing housing | Gray Iron |
| 11 | Expeller ring | High-chrome alloy |
| Natural Rubber | ||
| 12 | Front casing | Gray iron or Nodular cast iron |
| 13 | Rear casing | Gray iron or Nodular cast iron |
| 14 | Base | Gray Iron |
| 15 | Support | QT500-7 |
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |
