Slurry Pump Parts
>
|
| Place of Origin | China |
| Brand Name | horizontal-slurrypump.com |
| Certification | ISO |
| Model Number | OEM |
| Document | Product Brochure PDF |
1. SHIZA brand slurry pump spare parts are made of high chromium alloy A05 which has superior wear
and corrosive resistance as well as rubber liners parts made of high qualitity natrual rubber to
transport the medium with light abrasion and non-sharp solids liquid and have small corrosive liquid.
2. We do non-standard chrome allory material or rubber parts OEM .
3. APPLICATION OF THE PUMP PARTS:
The Chrome alloy long service life centrifugal casting slurry water pump part adapt to pumps, which are widely used in transport water or slurry with strong corrosive proof and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials and other industry.
4. MATERIAL OF SLURRY PUMP PARTS:
Rubber: Natural Rubber, Nitrile Rubber, Polychloroprene
Metal: (High) Chromium Alloy,Nodular Case Iron, Ductile Gray Iron, and Stainless Steel(ss314.ss316)
| AH(R) | L(R), M | HH | SP(R) | G | AF Series |
| 1.5/1B-AH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-AH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-AH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-AH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-AH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | |
| 6/4E-AH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | |
| 8/6E-AH(R) | 350S-L | 6S-H | 14/12T-G | ||
| 8/6R-AH(R) | 400ST-L | 8/6S-H | 16/14 G-G | ||
| 10/8F-AH(R) | 450ST-L | 8/6X-H | 16/14TU-GH | ||
| 10/8X-AH(R) | 10/8 E-M | 6S-HP | 16/14H-GH | ||
| 12/10ST-AH(R) | 10/8 R-M | 8/6S-HP | 18/16G-G | ||
| 14/12ST-AH(R) | 8/6X-HP | 18/16TU-GH | |||
| 16/14TU-AH(R) | |||||
| 20/18G(TU)-AH(R) |
Warma slurry pump parts code:
-tell me the standard code no .we can quote you price immediately :
B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,
EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,
GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,
S50, U01, EPDM, PU, CR...
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |

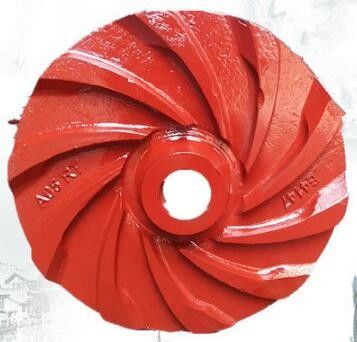

| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |
