Product introduction

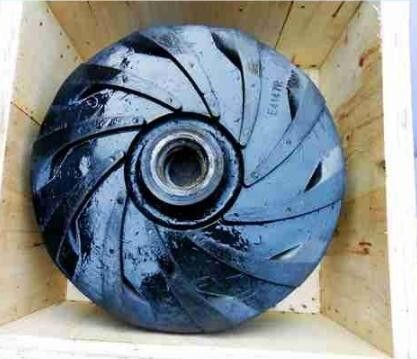

The 6 / 4E - AHR Rubber Impeller E4147R refers to a wheel with a moving blade, and also refers to a general term for a disk and a rotating blade mounted thereon. The 6 / 4E - AHR Rubber Impeller E4147R is a key component of the 6 / 4E - AHR slurry pump.
The 6 / 4E - AHR slurry pump is made of rubber. Natural rubber material slurry pump lining, wear-resistant, anti-aging, good wear resistance, tear resistance and stability, anti-aging.
The rubber lining parts of the slurry pump can be completely interchanged with the metal lining to better accommodate corrosive slurries.
| AH(R) | L(R), M | HH | SP(R) | G | AF Series |
| 1.5/1B-AH(R) | 20A-L | 1.5/1 C-HH | 40PV-SP(R) | 6/4D-G | 2QV-AF |
| 2/1.5B-AH(R) | 50B-L(R) | 3/2D-HH | 65QV-SP(R) | 8/6E-G | 3QV-AF |
| 3/2C-AH(R) | 75C-L | 4/3E-HH | 100RV-SP(R) | 10/8F-G | 6SV-AF |
| 4/3C-AH(R) | 100 D-L | 4/3X-HH | 150SV-SP(R) | 10/8S-G | 8SV-AF |
| 6/4D-AH(R) | 150E-L | 6/4F-HH | 200SV-SP | 12/10G-G | |
| 6/4E-AH(R) | 300S-L | 6/4X-HH | 250TV-SP | 14/12G-G | |
| 8/6E-AH(R) | 350S-L | 6S-H | 14/12T-G | ||
| 8/6R-AH(R) | 400ST-L | 8/6S-H | 16/14 G-G | ||
| 10/8F-AH(R) | 450ST-L | 8/6X-H | 16/14TU-GH | ||
| 10/8X-AH(R) | 10/8 E-M | 6S-HP | 16/14H-GH | ||
| 12/10ST-AH(R) | 10/8 R-M | 8/6S-HP | 18/16G-G | ||
| 14/12ST-AH(R) | 8/6X-HP | 18/16TU-GH | |||
| 16/14TU-AH(R) | |||||
| 20/18G(TU)-AH(R) |
Warman slurry pump parts code:
-tell me the standard code no .we can quote you price immediately :
B1013, B15013, C2013, D3013, E4013, F6013, G8013, G10013, G12013, H14013, AL2013, BL5013,
EL15013, F8013, DH2013, EH3013, EG86013, ESH4013, FH4013, FG108013, FSH6013, GG10013,
GG1412292, GGH10292, EP4013, SL30013, FH6013, FHP6013, FG108013, GSH10013XM...
Pump replaced parts material:
1) Material: D21, G01, A05...
2) Shaft material: 45#, 40Cr, SS304, SS315...
3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...
4) Lantern ring material: 304, 316, PTFE, Cu...
5) Bearing housing/ bearing end cover material: G01, D21...
6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42,
S50, U01, EPDM, PU, CR...
Spare parts materials
| NO. | Name | code | Regular material | Alternational materials |
| 1 | Impeller | A05(Cr27) | A49,Rubber,304,316 | |
| 2 | Throatbush | 083 | A05(Cr27) | A49,Rubber,304,316 |
| 3 | Frame plate liner insert | 041 | A05(Cr27) | A49,Rubber,304,316 |
| 4 | Volute liner | 110 | A05(Cr27) | A49,Rubber,304,316 |
| 5 | Expeller ring | 029 | Cast iron | A49,Rubber,304,316 |
| 6 | Expeller | 028 | Cast iron | A49,Rubber,304,316 |
| 7 | Cover plate liner | 018 | Rubber | |
| 8 | Frame plate liner | 036 | Rubber | |
| 9 | Frame plate | 032 | Cast iron | Ductile cast iron |
| 10 | Cover plate | 013 | Cast iron | Ductile cast iron |
| 11 | Base | 003 | Cast iron | Ductile cast iron |
| 12 | 005 | Assorted |
